UEB Series
・Suitable for transmission inspection.・Light guide plate used for even and uniform plane emission.
・Light intensity is less than that of the direct type, but the space needed for use is reduced.
Products
LED Light
Edge-Type Transmitted Light
・Light guide plate used for even and uniform plane emission.
・Light intensity is less than that of the direct type, but the space needed for use is reduced.
Specifications: UEB Series
| Type | Light color |
Light-emitting surface dimensions (mm) |
Power consumption |
DXF | STP | |
|---|---|---|---|---|---|---|
| UEB-25R25 | Red ■ | 25×25 | 24V/0.5W | DXF | STP | |
| UEB-25W25 | White □ | 25×25 | 24V/0.4W | |||
| UEB-25B25-2 | Blue ■ | 25×25 | 24V/0.4W | |||
| UEB-50R50 | Red ■ | 50×50 | 24V/1.9W | DXF | STP | |
| UEB-50W50 | White □ | 50×50 | 24V/3.3W | |||
| UEB-50B50-2 | Blue ■ | 50×50 | 24V/3.3W | |||
| UEB-70R50 | Red ■ | 70×50 | 24V/1.9W | DXF | STP | |
| UEB-70W50 | White □ | 70×50 | 24V/3.3W | |||
| UEB-70B50-2 | Blue ■ | 70×50 | 24V/3.3W | |||
| UEB-100R100* | Red ■ | 100×100 | 24V/3.8W | DXF | STP | |
| UEB-100W100* | White □ | 100×100 | 24V/6.5W | |||
| UEB-100B100* | Blue ■ | 100×100 | 24V/6.5W |
“*” represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case “2” should be put to the end of the type code.

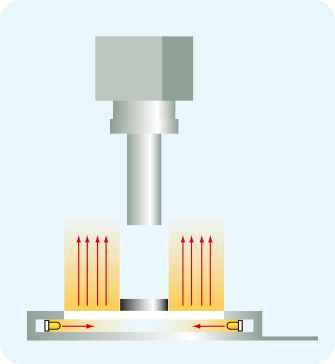

Conceptual illuminance figure
