UHP/CON Series

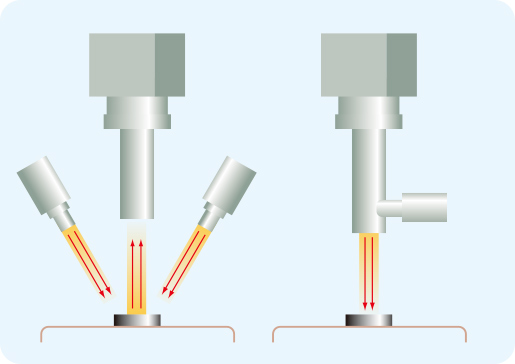

・Can be used as lighting for coaxial vertical illumination lens and spot lighting.・High-power LED elements used to achieve high intensity.
・Use a dedicated power supply for high-power spot light.
Products
LED Light
High-Power Spot Light
・High-power LED elements used to achieve high intensity.
・Use a dedicated power supply for high-power spot light.
Specifications: UHP/CON Series
| Type | Light color | Light-emitting part dimensions (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|
| UHP-SPR3W | Red ● | φ5 | 3.0W | DXF | |
| UHP-SPW3W | White ○ | φ5 | 3.0W | ||
| UHP-SPB3W | Blue ● | φ5 | 3.0W | ||
| UHP-SPG3W* | Green ● | φ5 | 3.0W |
"*" represents built-to-order products.
Product specifications: CON Series
| Type | Light color | Light-emitting part dimensions (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|
| UHP-SPR3W-CON* | Red ● | φ21 / condensing | 3.0W | DXF | |
| UHP-SPW3W-CON* | White ○ | φ21 / condensing | 3.0W | ||
| UHP-SPB3W-CON* | Blue ● | φ21 / condensing | 3.0W | ||
| UHP-SPG3W-CON* | Green ● | φ21 / condensing | 3.0W |
"*" represents built-to-order products.
Product specifications: Light guide connection adapter
| Type | DXF | ||
|---|---|---|---|
| UHP-AD1 | High-power spot and light guide connection adapter | DXF |

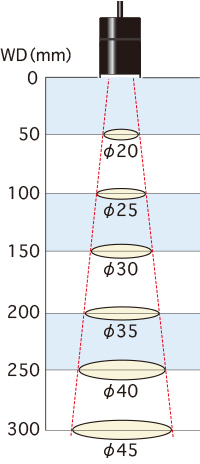

Illumination area of CON
Conceptual illuminance figure
