USCO Series
・Regular-reflection images can be obtained, which enables use with high reflectivity workpieces.・Effective for uniform illumination on flat surfaces.
・Use of light control films offers variable light quality.
Products
LED Light
Pseudo-Coaxial Light
・Effective for uniform illumination on flat surfaces.
・Use of light control films offers variable light quality.
Specifications: USCO Series
| Type | Light color | Opening dimensions (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|
| USCO-18R18 | Red ■ | 18×18 | 24V/1.0W | DXF | |
| USCO-18W18 | White □ | 18×18 | 24V/1.6W | ||
| USCO-18B18-2 | Blue ■ | 18×18 | 24V/1.6W | ||
| USCO-31R28 | Red ■ | 31×28 | 24V/1.9W | DXF | |
| USCO-31W28 | White □ | 31×28 | 24V/3.3W | ||
| USCO-31B28-2 | Blue ■ | 31×28 | 24V/3.3W | ||
| USCO-50R50 | Red ■ | 50×50 | 24V/4.3W | DXF | |
| USCO-50W50 | White □ | 50×50 | 24V/7.3W | ||
| USCO-50B50-2 | Blue ■ | 50×50 | 24V/7.3W | ||
| USCO-75R72 | Red ■ | 75×72 | 24V/7.7W | DXF | |
| USCO-75W72 | White □ | 75×72 | 24V/13.1W | ||
| USCO-75B72-2 | Blue ■ | 75×72 | 24V/13.1W | ||
| USCO-100R100* | Red ■ | 100×100 | 24V/13.0W | DXF | |
| USCO-100W100* | White □ | 100×100 | 24V/22.0W | ||
| USCO-100B100* | Blue ■ | 100×100 | 24V/22.0W | ||
| USCO-130R130* | Red ■ | 130×130 | 24V/24.0W | DXF | |
| USCO-130W130* | White □ | 130×130 | 24V/40.8W | ||
| USCO-130B130* | Blue ■ | 130×130 | 24V/40.8W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

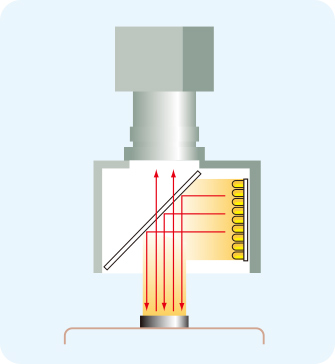

Conceptual illuminance figure
As workpiece imaged are obtained through a glass, there may be some variation in the lens working distance (WD).
