ULRH Series
・Suitable for inspection of surfaces with minor irregularity.・Suitable for highlighting a chipped edge, etc.
・360-degree lighting enables easy installation and adjustment.
Products
LED Light
Low-Angle Horizontal Ring Light
・Suitable for highlighting a chipped edge, etc.
・360-degree lighting enables easy installation and adjustment.
Specifications: ULRH Series
| Type | Light color | Ring I.D. (mm) | Ring O.D. (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|---|
| ULRH-46R75* | Red ● | φ46 | φ75 | 24V/1.9W | DXF | |
| ULRH-46W75* | White ○ | φ46 | φ75 | 24V/3.3W | ||
| ULRH-46B75* | Blue ● | φ46 | φ75 | 24V/3.3W | ||
| ULRH-60R96* | Red ● | φ60 | φ96 | 24V/2.4W | DXF | |
| ULRH-60W96* | White ○ | φ60 | φ96 | 24V/4.1W | ||
| ULRH-60B96* | Blue ● | φ60 | φ96 | 24V/4.1W | ||
| ULRH-110R146* | Red ● | φ110 | φ146 | 24V/3.8W | DXF | |
| ULRH-110W146* | White ○ | φ110 | φ146 | 24V/6.5W | ||
| ULRH-110B146* | Blue ● | φ110 | φ146 | 24V/6.5W | ||
| ULRH-170R206* | Red ● | φ170 | φ206 | 24V/5.8W | DXF | |
| ULRH-170W206* | White ○ | φ170 | φ206 | 24V/9.8W | ||
| ULRH-170B206* | Blue ● | φ170 | φ206 | 24V/9.8W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

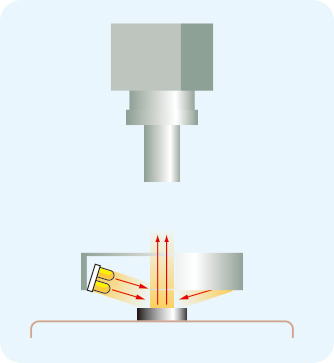

Conceptual illuminance figure
