UDR Series
・Suitable for various inspection applications.・High intensity can be achieved by means of direct light.
・360-degree lighting enables easy installation and adjustment.
・Use of diffusion and polarizing plates offers variable light quality.
Products
LED Light
Direct Ring Light
・High intensity can be achieved by means of direct light.
・360-degree lighting enables easy installation and adjustment.
・Use of diffusion and polarizing plates offers variable light quality.
Specifications: UDR Series
| Type | Light color | Ring I.D. (mm) | Ring O.D. (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|---|
| UDR-10R32 | Red ● | φ10 | φ32 | 24V/1.4W | DXF | |
| UDR-10W32 | White ○ | φ10 | φ32 | 24V/2.4W | ||
| UDR-10B32-2 | Blue ● | φ10 | φ32 | 24V/2.4W | ||
| UDR-15R38* | Red ● | φ15 | φ38 | 24V/2.3W | DXF | |
| UDR-15W38* | White ○ | φ15 | φ38 | 24V/5.8W | ||
| UDR-15B38* | Blue ● | φ15 | φ38 | 24V/5.8W | ||
| UDR-16R28* | Red ● | φ16 | φ28 | 24V/1.4W | DXF | |
| UDR-16W28* | White ○ | φ16 | φ28 | 24V/1.2W | ||
| UDR-16B28* | Blue ● | φ16 | φ28 | 24V/1.2W | ||
| UDR-16R48 | Red ● | φ16 | φ48 | 24V/2.9W | DXF | |
| UDR-16W48 | White ○ | φ16 | φ48 | 24V/4.9W | ||
| UDR-16B48-2 | Blue ● | φ16 | φ48 | 24V/4.9W | ||
| UDR-28R50 | Red ● | φ28 | φ50 | 24V/2.4W | DXF | |
| UDR-28W50 | White ○ | φ28 | φ50 | 24V/4.1W | ||
| UDR-28B50-2 | Blue ● | φ28 | φ50 | 24V/4.1W | ||
| UDR-30R66 | Red ● | φ30 | φ66 | 24V/4.8W | DXF | |
| UDR-30W66 | White ○ | φ30 | φ66 | 24V/8.2W | ||
| UDR-30B66-2 | Blue ● | φ30 | φ66 | 24V/8.2W | ||
| UDR-35R70-F | Red ● | φ35 | φ70 | 24V/4.3W | DXF | |
| UDR-35W70-F | White ○ | φ35 | φ70 | 24V/7.3W | ||
| UDR-35B70-F-2 | Blue ● | φ35 | φ70 | 24V/7.3W | ||
| UDR-50R90 | Red ● | φ50 | φ90 | 24V/8.6W | DXF | |
| UDR-50W90 | White ○ | φ50 | φ90 | 24V/14.7W | ||
| UDR-50B90-2 | Blue ● | φ50 | φ90 | 24V/14.7W | ||
| UDR-60R120* | Red ● | φ60 | φ120 | 24V/17.3W | DXF | |
| UDR-60W120* | White ○ | φ60 | φ120 | 24V/29.4W | ||
| UDR-60B120* | Blue ● | φ60 | φ120 | 24V/29.4W | ||
| UDR-95R140* | Red ● | φ95 | φ140 | 24V/14.4W | DXF | |
| UDR-95W140* | White ○ | φ95 | φ140 | 24V/12.2W | ||
| UDR-95B140* | Blue ● | φ95 | φ140 | 24V/12.2W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

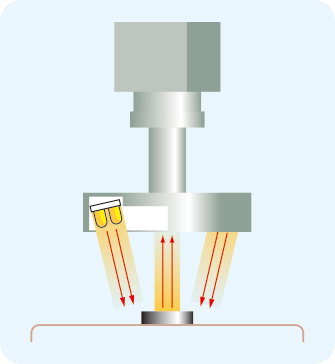

Conceptual illuminance figure
