UB Series
・Irradiation angle can be set at will according to the workpiece shape.・High intensity can be achieved by means of direct light.
・Use of diffusion and polarizing plates offers variable light quality.
Products
LED Light
Bar Light
・High intensity can be achieved by means of direct light.
・Use of diffusion and polarizing plates offers variable light quality.
Specifications: UB Series
| Type | Light color |
Light-emitting part dimensions (mm) |
Power consumption |
DXF | STP | |
|---|---|---|---|---|---|---|
| UB-34R8* | Red ■ | 34×8 | 24V/1.0W | DXF | STP | |
| UB-34W8* | White □ | 34×8 | 24V/1.6W | |||
| UB-34B8* | Blue ■ | 34×8 | 24V/1.6W | |||
| UB-50R15 | Red ■ | 50×15 | 24V/1.4W | DXF | STP | |
| UB-50W15 | White □ | 50×15 | 24V/2.4W | |||
| UB-50B15-2 | Blue ■ | 50×15 | 24V/2.4W | |||
| UB-75R15* | Red ■ | 75×15 | 24V/2.4W | DXF | STP | |
| UB-75W15* | White □ | 75×15 | 24V/3.7W | |||
| UB-75B15* | Blue ■ | 75×15 | 24V/3.7W | |||
| UB-75R30 | Red ■ | 75×30 | 24V/4.3W | DXF | STP | |
| UB-75W30 | White □ | 75×30 | 24V/7.3W | |||
| UB-75B30-2 | Blue ■ | 75×30 | 24V/7.3W | |||
| UB-100R15* | Red ■ | 100×15 | 24V/2.9W | DXF | STP | |
| UB-100W15* | White □ | 100×15 | 24V/4.9W | |||
| UB-100B15* | Blue ■ | 100×15 | 24V/4.9W | |||
| UB-130R15 | Red ■ | 130×15 | 24V/3.8W | DXF | STP | |
| UB-130W15 | White □ | 130×15 | 24V/6.5W | |||
| UB-130B15-2 | Blue ■ | 130×15 | 24V/6.5W | |||
| UB-150R15* | Red ■ | 150×15 | 24V/4.3W | DXF | STP | |
| UB-150W15* | White □ | 150×15 | 24V/7.3W | |||
| UB-150B15* | Blue ■ | 150×15 | 24V/7.3W | |||
| UB-200R15* | Red ■ | 200×15 | 24V/5.8W | DXF | STP | |
| UB-200W15* | White □ | 200×15 | 24V/9.8W | |||
| UB-200B15* | Blue ■ | 200×15 | 24V/9.8W | |||
| UB-200R20* | Red ■ | 200×20 | 24V/7.7W | DXF | STP | |
| UB-200W20* | White □ | 200×20 | 24V/13.1W | |||
| UB-200B20* | Blue ■ | 200×20 | 24V/13.1W | |||
| UB-200R30* | Red ■ | 200×30 | 24V/11.5W | DXF | STP | |
| UB-200W30* | White □ | 200×30 | 24V/19.6W | |||
| UB-200B30* | Blue ■ | 200×30 | 24V/19.6W | |||
| UB-250R15* | Red ■ | 250×15 | 24V/7.2W | DXF | STP | |
| UB-250W15* | White □ | 250×15 | 24V/12.2W | |||
| UB-250B15* | Blue ■ | 250×15 | 24V/12.2W | |||
| UB-300R15* | Red ■ | 300×15 | 24V/8.6W | DXF | STP | |
| UB-300W15* | White □ | 300×15 | 24V/14.7W | |||
| UB-300B15* | Blue ■ | 300×15 | 24V/14.7W | |||
| UB-500R6* | Red ■ | 500×6 | 24V/10.1W | DXF | STP | |
| UB-500W6* | White □ | 500×6 | 24V/10.1W | |||
| UB-500B6* | Blue ■ | 500×6 | 24V/10.1W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

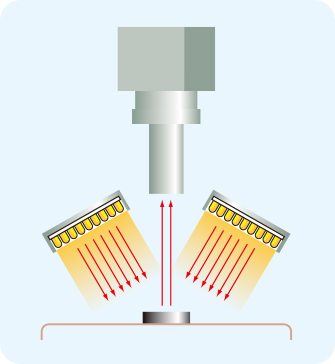

Conceptual illuminance figure
